Steam heating boiler, wood engraving, published in 1880
Wall Art and Photo Gifts from Fine Art Storehouse
Steam heating boiler, wood engraving, published in 1880

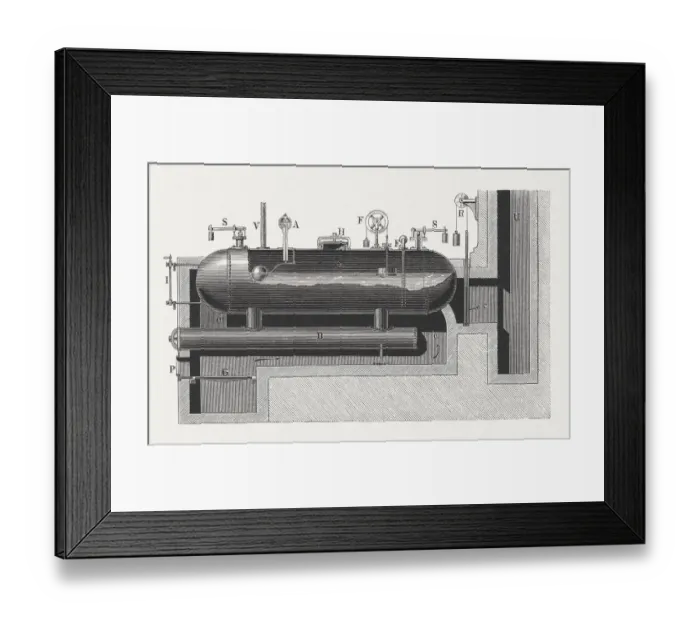

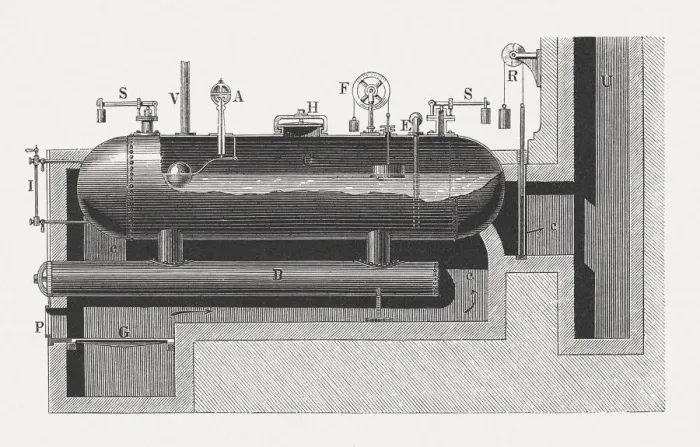

Steam heating boiler for a heating system in home with two boiling tubes, cross section: A) floater with alarm whistle; B) boiling tube; C) hull of the boiler; E) water supply pipe; F) water level indicator with floater; G) firebox; H) hatch for cleaning; I) water level indicator-pipe; P) furnace door; R) slide damper; S) safety relief valves; U) chimney; V) steam discharge pipe; c) heating channels. Wood engraving, published in 1880
ZU_09
Media ID 11772332
© ZU_09
78279 Apartment Boiler Chimney Convenience Cross Section Equipment Heat Temperature Home Interior Image Date Industrial Revolution Innovation Organization Organizations Oven Pipe Tube Radiator Residential Building Smoke Stack Steam Technology Tube Wood Engraving
